Single arm electric anesthesia pendant FT-A1E - Hunan Mplent Optoelectronics Technology CO., Ltd.

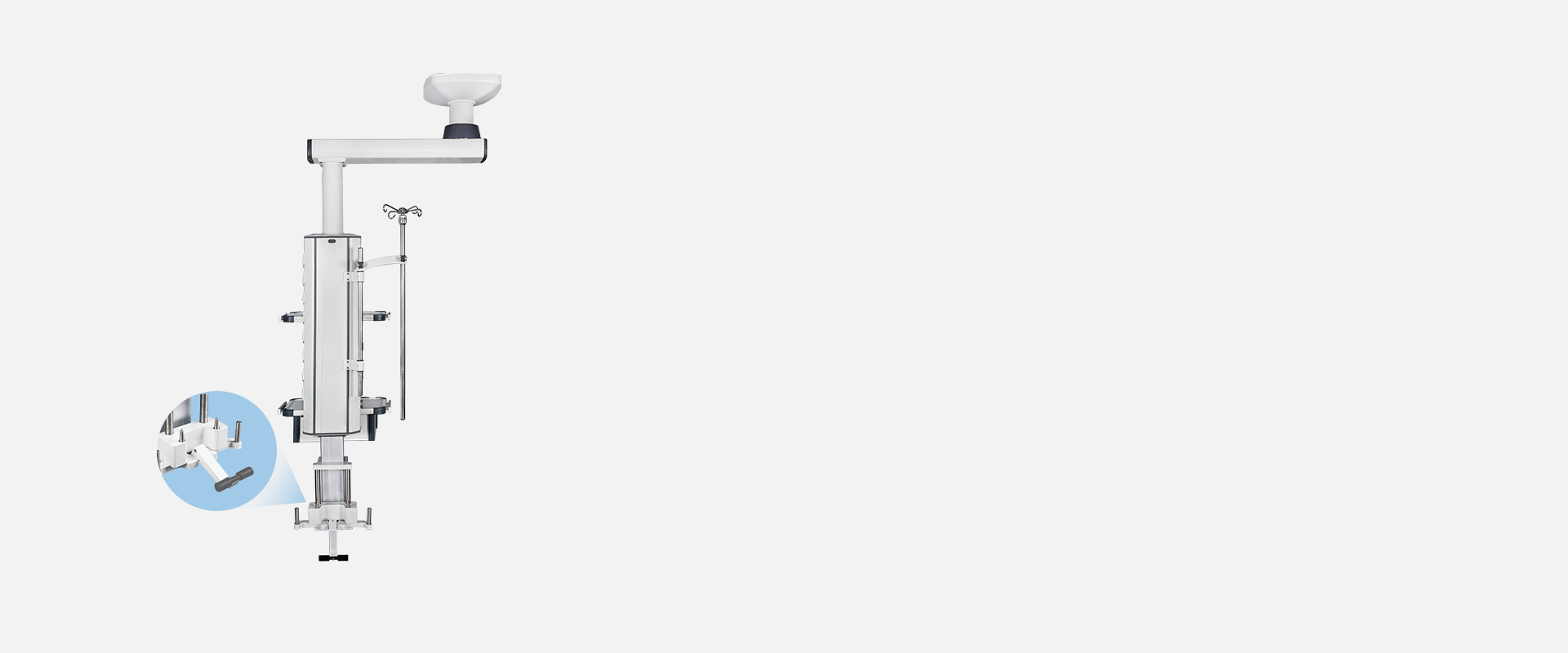

Function Description

The terminal box hanger structure has a rotating limit device to ensure the stability of the equipment without drift
Gas interface color and shape is different, with anti - error function
The hose on the terminal is made of PVC material, and the functional pipes are distinguished by different colors
The gas interface can be pluggable more than 20,000 times; Gas terminal has scalability (GB, German, American standard, etc.)
The tower body configuration can be selected according to your requirements, such as oxygen, suction, laughing gas, air and other medical gas terminals and exhaust emission terminals
The main material is made of high strength 6063 aluminum alloy profile, moulded extrusion molding, modular splicing, the whole fully enclosed design, no acute Angle surface, no screws exposed

Product parameters
Working power supply	AC220V；50Hz
Range of motion of the transverse arm (radius)	700-1100mm (can be configured according to hospital requirements)Structure Terminal box hanger structure, length ≥1000mm, rotating Angle: 0 ~ 340°
Load capacity	Net load capacity ≥70KG
Lifting height	can be suspended anesthesia car, lifting height ≥250mm
Instrument platform	2 layers, a single tray bearing weight ≥50KG, 550mm400mm30mm (height adjustable); The side rail enclosure adopts 10mm*25mm international standard, round corner collision avoidance design
Gas interface configuration	2* oxygens; 2* attracts; 1 air; 1 jetting waste (can be configured according to hospital requirements)
Power sockets	7* power sockets; 220V,10A
network interface	One RJ45 network socket
Other ground	terminal 1,Pipeline management tools: 2 sets, 1 drawer, 1* stainless steel adjustable infusion rod holder (with 4 infusion bottle hooks), 1* stainless steel adjustable injection pump holder
Installation Method	Suction top installation

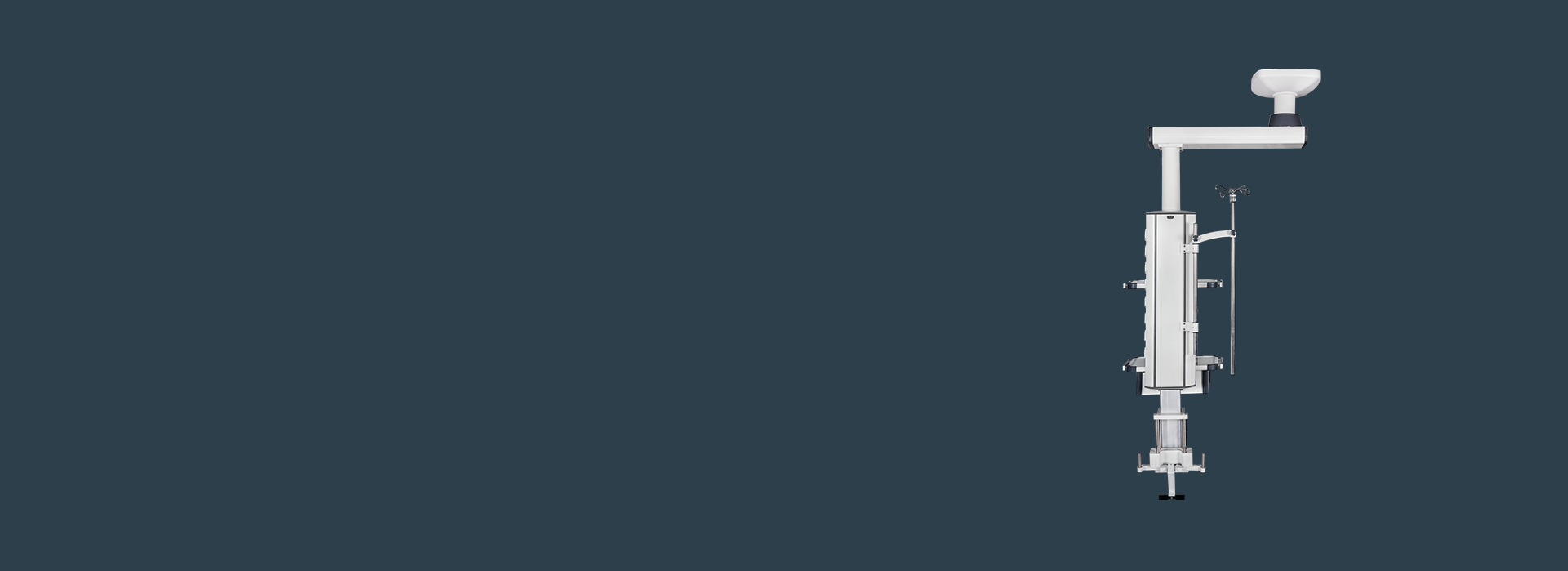

Single arm electric anesthesia pendant
