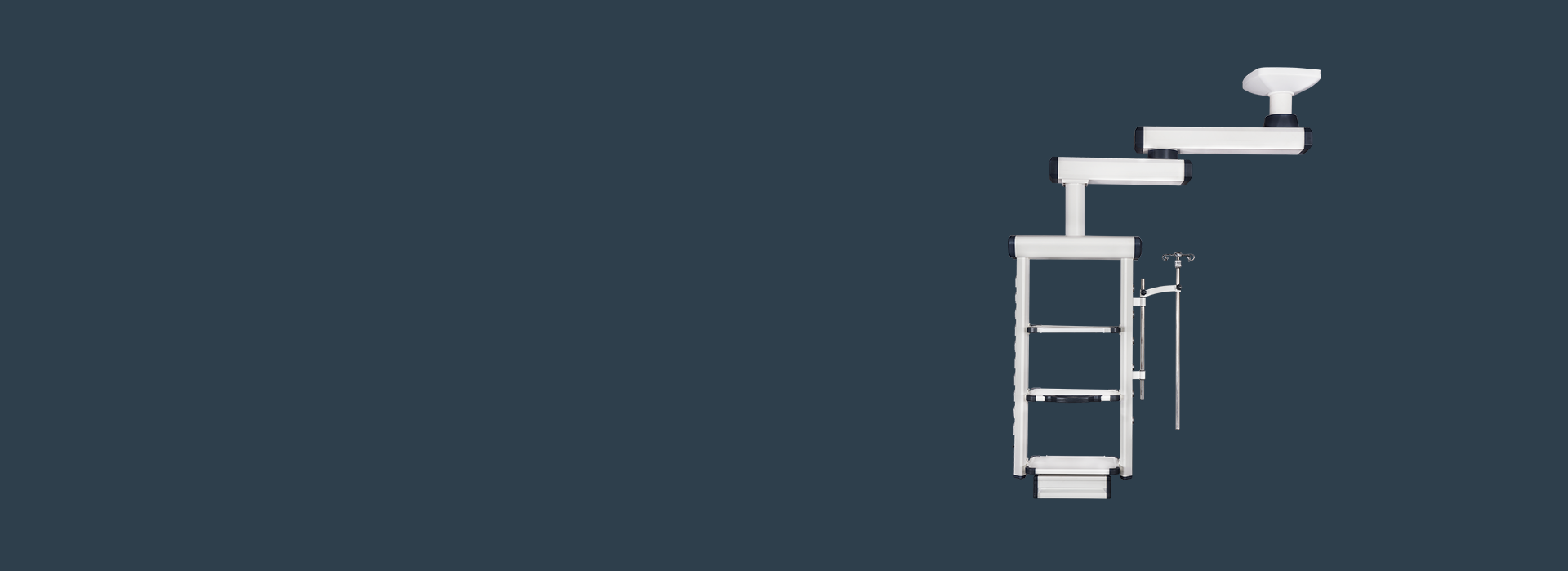

Double arm endoscopic pendant

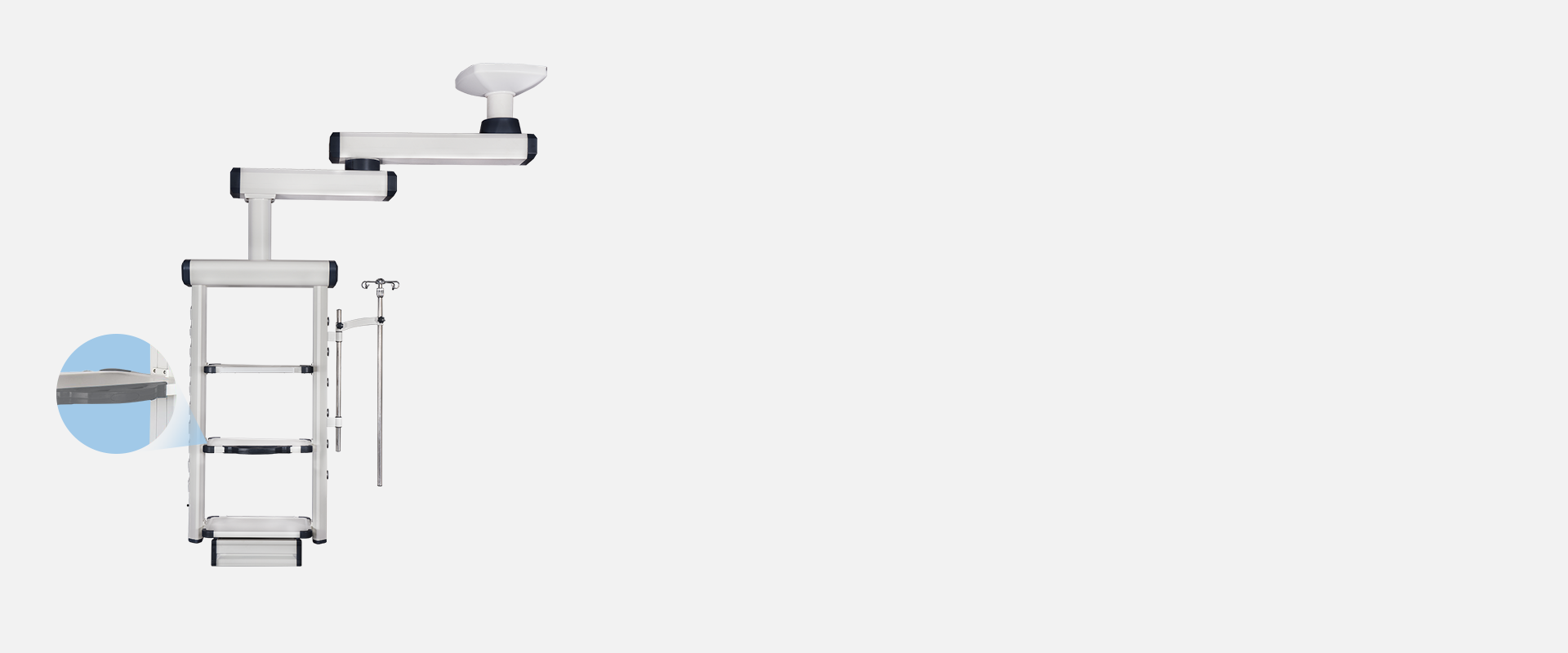

Function introduction

The gas interface can be plugged more than 20,000 times; the gas terminal is scalable (optional national standard, German standard, American standard, etc.)
The tower body configuration can be equipped with medical gas terminals such as oxygen, suction, laughing gas, air and exhaust gas discharge terminals according to your requirements
The main material is made of high-strength 6063 aluminum alloy profiles, molded extrusion molding, modular splicing, overall fully enclosed design, no sharp angles on the surface, and no exposed screws
Electrostatic spraying is used for material surface treatment; anti-corrosion and easy to clean. Suitable for medical clean environment
Strong and weak current, network, communication paging, video and other sockets can also be reasonably selected

Product parameters
Working power	AC220V；50Hz
Cross arm range of motion (radius)	1100-1300mm (can be configured according to hospital requirements)
Structure	Terminal box suspension column structure, length ≥ 1000mm, rotatable angle: 0～340°
Load capacity	Net load capacity ≥ 70KG
The instrument platform	3 floors, a single pallet can bear ≥50KG, 550mm400mm30mm (height adjustable); the side rail enclosure adopts the international standard of 10mm*25mm, and the rounded corners are anti-collision design
Gas interface configuration	2 oxygen; 2 suction; 2 air (can be configured according to the requirements of the hospital)
power sockets	7pcs, 220V, 10A(socket has scalability)
Communication port	1 RJ45 network socket
Others	1 ground terminal, 2 sets of pipeline management tools, 1 drawer, 1 stainless steel adjustable infusion rod holder (with 4 infusion bottle hooks), 1 stainless steel adjustable syringe pump holder
Installation method	Suction ceiling installation
