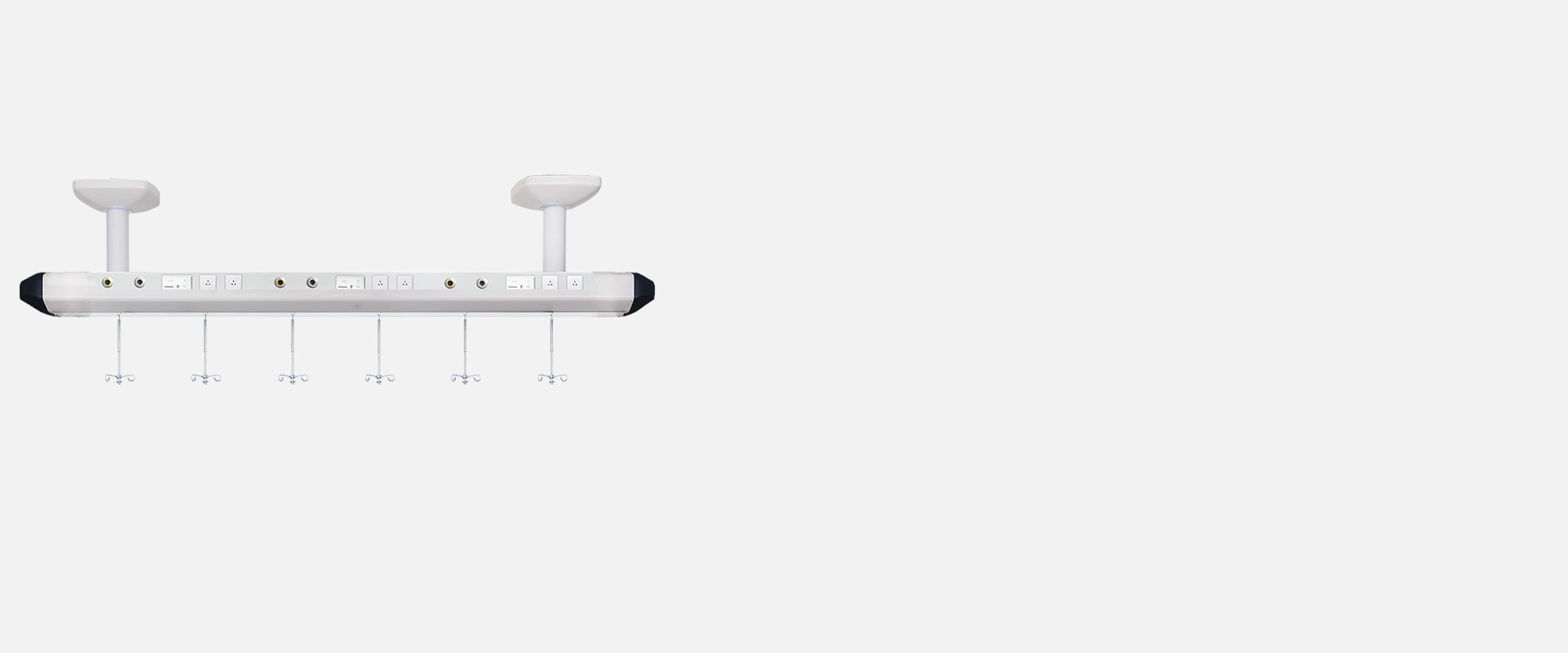

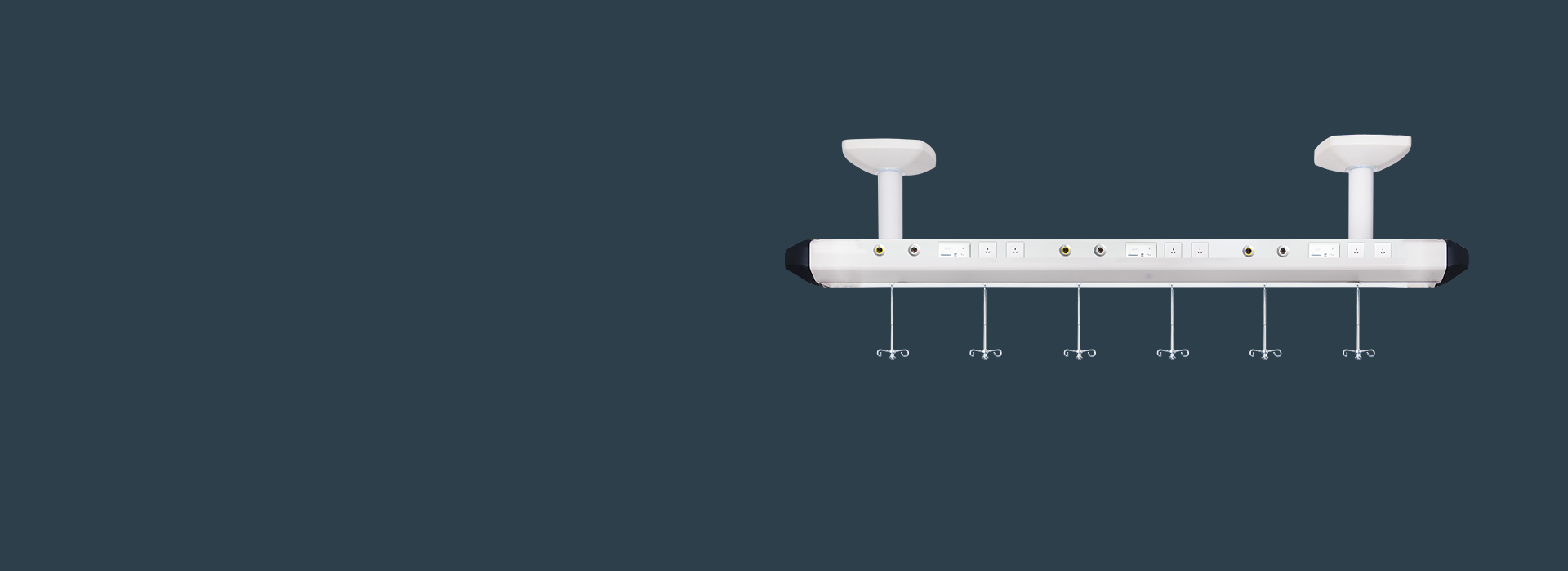

Infusion Suspension Bridge Surgical Pendant

Home Products Tower suspension bridge Medical suspension bridge Infusion Suspension Bridge Surgical Pendant

Ceiling-mounted, easy to install, equipment no drift
The infusion suspension bridge combines the functions of the equipment belt and the suspension bridge, and the bridge is equipped with oxygen, suction, and power
The bottom of the bridge is equipped with an infusion hook, which is simple in structure and easy to use, and is suitable for infusion halls and hemodialysis rooms

Function introduction

The gas hose is made of imported pvc material to ensure gas safety
Material surface treatment adopts electrostatic spraying; anti-corrosion, easy to clean
The main material is made of high-strength 6063 aluminum alloy profile, with no sharp angle on the surface and no exposed screws
The color and shape of the gas interface are different, and it has the function of preventing wrong connections; the gas interface can be plugged and unplugged more than 20,000 times

product parameter
Working power	AC220V; 50Hz
Beam length	1000～5600mm (the actual size is subject to the user's on-site measurement); can be spliced at will
Suspension rod spacing	1000mm (can be used on both sides, slide freely)
Height	2000mm from the ground (can be customized upon request)
Gas terminal	Each section (1000mm single side) is equipped with 1 oxygen and 1 suction (can be configured according to the hospital)
Power socket	Each section (1000mm single side) is equipped with 2, 220v multifunctional power sockets (can be configured according to the hospital)
Communication port (optional)	RJ45 network interface, telephone interface, call button
Other	ground terminal 1
