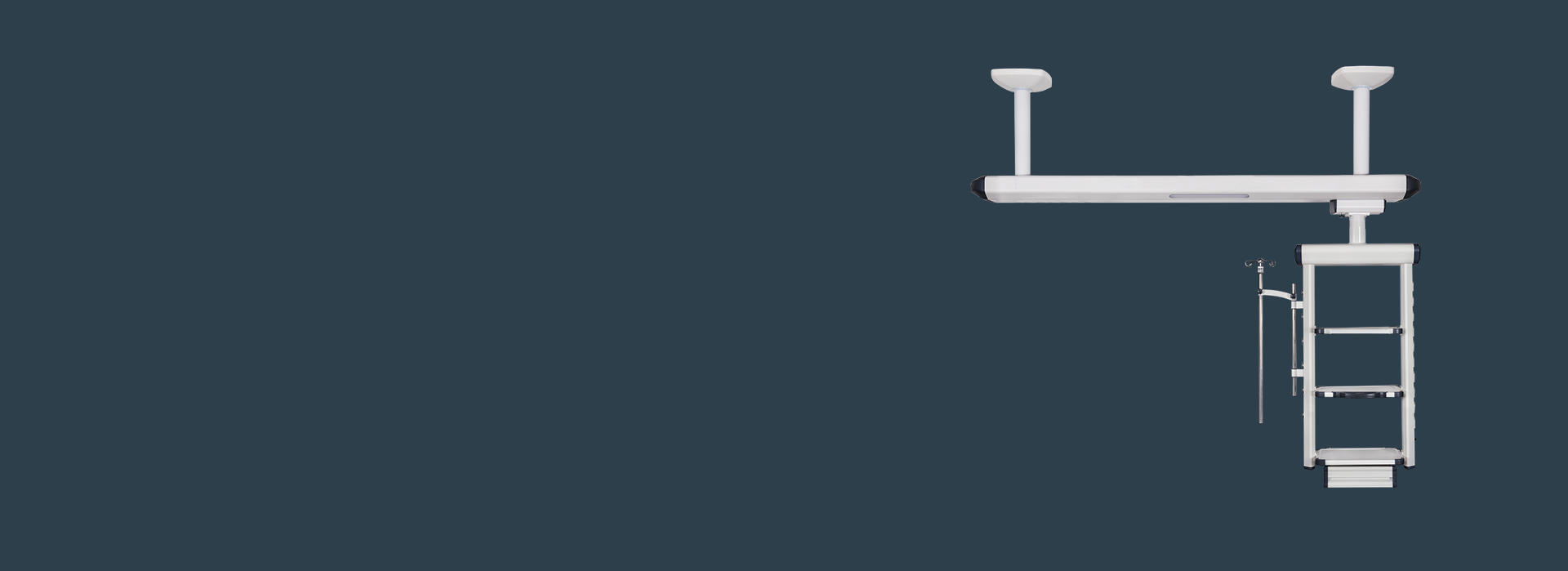

Wet and dry pendent bridge（Hanging box type）

Home Products Tower suspension bridge Medical suspension bridge Wet and dry pendent bridge（Hanging box type）

Equipped with mechanical brake device, without drift, can move easily
The color of the suspension bridge is soft and consistent. The gap at the joint of profiles should be sealed and the gas and electricity are separated
Communication paging, monitoring, video phone, background music and teaching and remote consultation system is optional according to your requirement

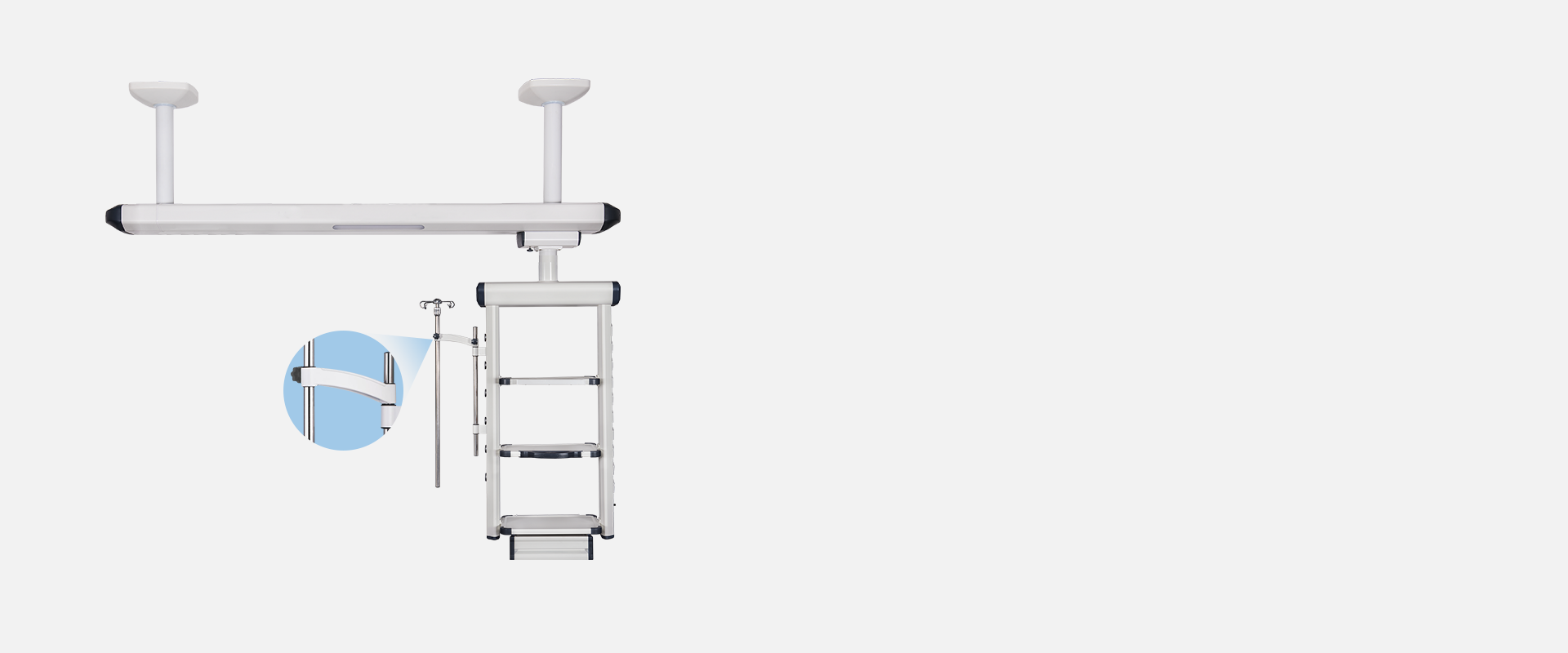

Function introduction

The color and shape of the interface are different, and it has the function of preventing error
The hose on the terminal is made of PVC material, and the functional pipes are distinguished by different colors
Each pendent is equipped with oxygen, negative pressure and compressed air joint free of charge
More than 20,000 times of insertion and removal; Gas terminal has scalability (GB, German, American standard, etc.)
The surface of the material is treated by electrostatic spraying. Corrosion resistant, easy to clean. Suitable for medical clean environment
All gas terminals, power supply interfaces and weak current interfaces are placed on the terminal box, and electricity and gas are separated

Product parameter
Working power	AC220V；50Hz
Length of beam	1800～2200mm (The actual size is subject to the user's worksite measurement)
Structure	Hanger type dry section tower:1pc(Move 400mm from side to side)
Instrument platform	3 layers, Single pallet bearing weight≥50kg, 550mm400mm30mm(adjustable height); use 10mm×25mm international standard side rail enclosure
Gas interface configuration	two oxygen, two suction, two air, could be configured according to the requirements of hospital )
Power supply outlet	7pcs, 220V、10A
Network por	one
Others	one lamp, Equipotential grounding terminal: 1pc; Pipeline management tool: 1set;One drawer;one stainless steel adjustable infusion rod frame(with 4 infusion bottle hooks);one stainless steel adjustable injection pump frame
Installation way	ceiling type
