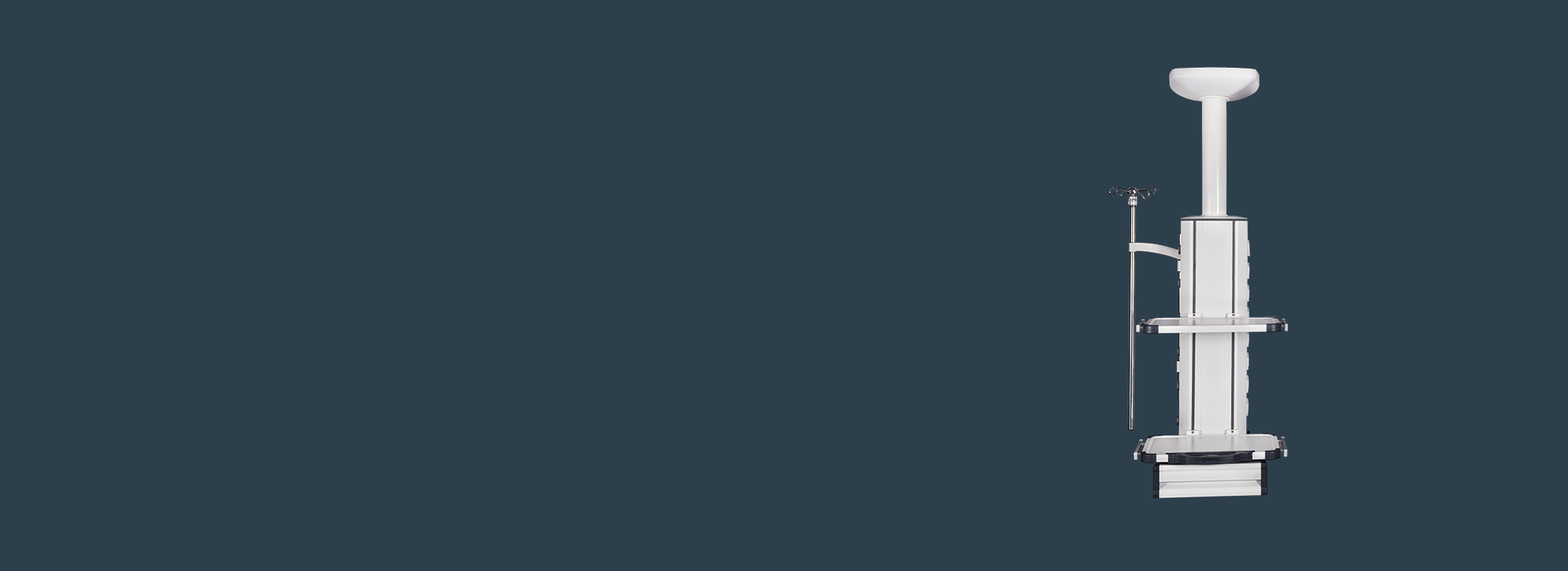

ICU Vertical surgical Pendant

Simple and compact structure, easy to use
Suction top installation, stable and firm
The surface of the material is treated by electrostatic spraying. Corrosion resistant, easy to clean

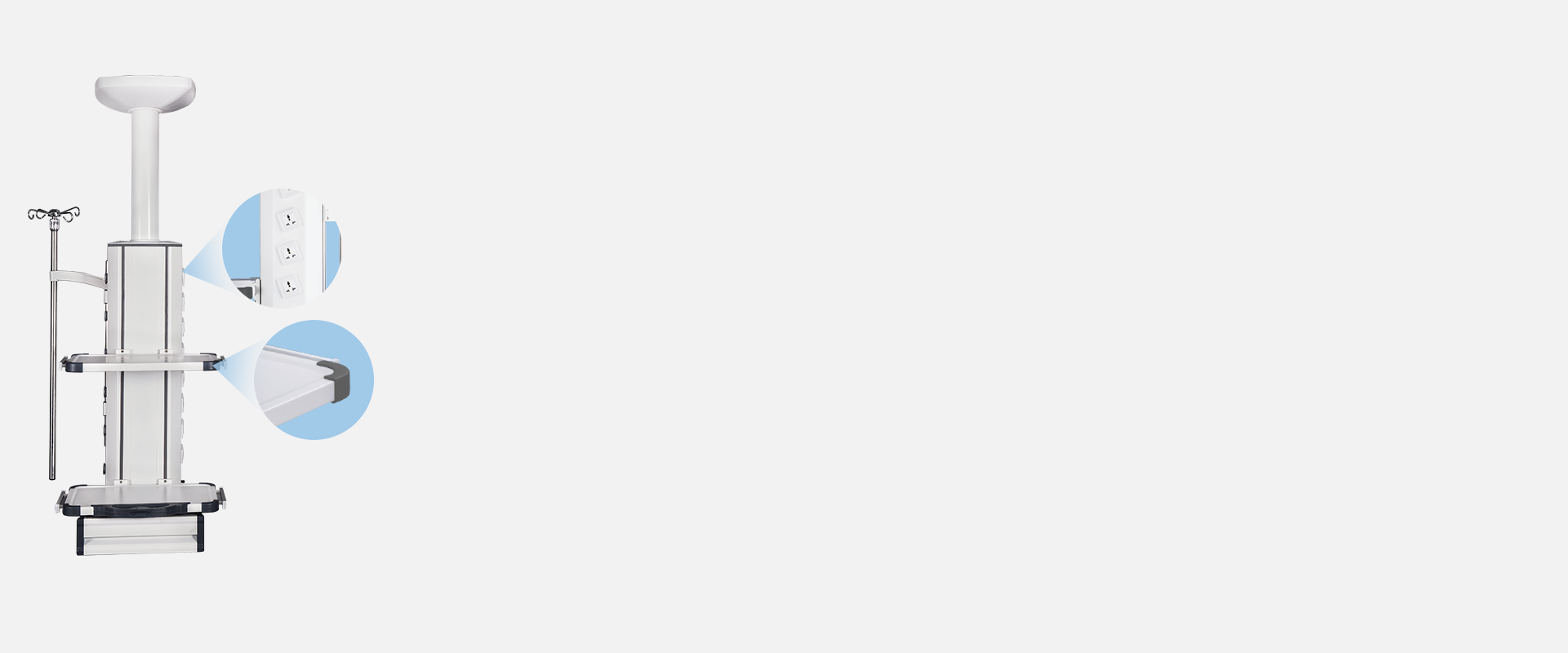

Function

The gas interface can be pluggable for more than 20,000 times
Gas interface color and shape is different, with anti - error function
Simple and compact structure, easy to use, is the operating room is the ideal medical gas power supply, network output terminal and instrument carrying workstation
The main material is made of high strength 6063 aluminum alloy profile, moulded extrusion molding, modular splicing, the whole fully enclosed design, no acute Angle surface, no screws exposed

Product parameters
Working power supply	AC220V；50Hz
Rotation Angle	Horizontal rotation Angle of the terminal box: 0 ~ 340°
Vertical lift	300mm
Load capacity	Net load capacity ≤100KG
Instrument platform	2 layers, 550mm400mm30mm (height adjustable); The side rail enclosure adopts 10mm*25mm international standard, round corner collision avoidance design
Gas interface configuration	2* oxygens; 2* attracts; 2 *air (can be configured according to the requirements of the hospital)
Power sockets	7* power sockets; 220V,10A
Network interface	1* network interface
Other ground	1* ground terminal, 1drawer, 1 stainless steel adjustable infusion rod holder (with 4 infusion bottle hooks), 1 *stainless steel adjustable injection pump holder
Installation Method	Suction top installation
