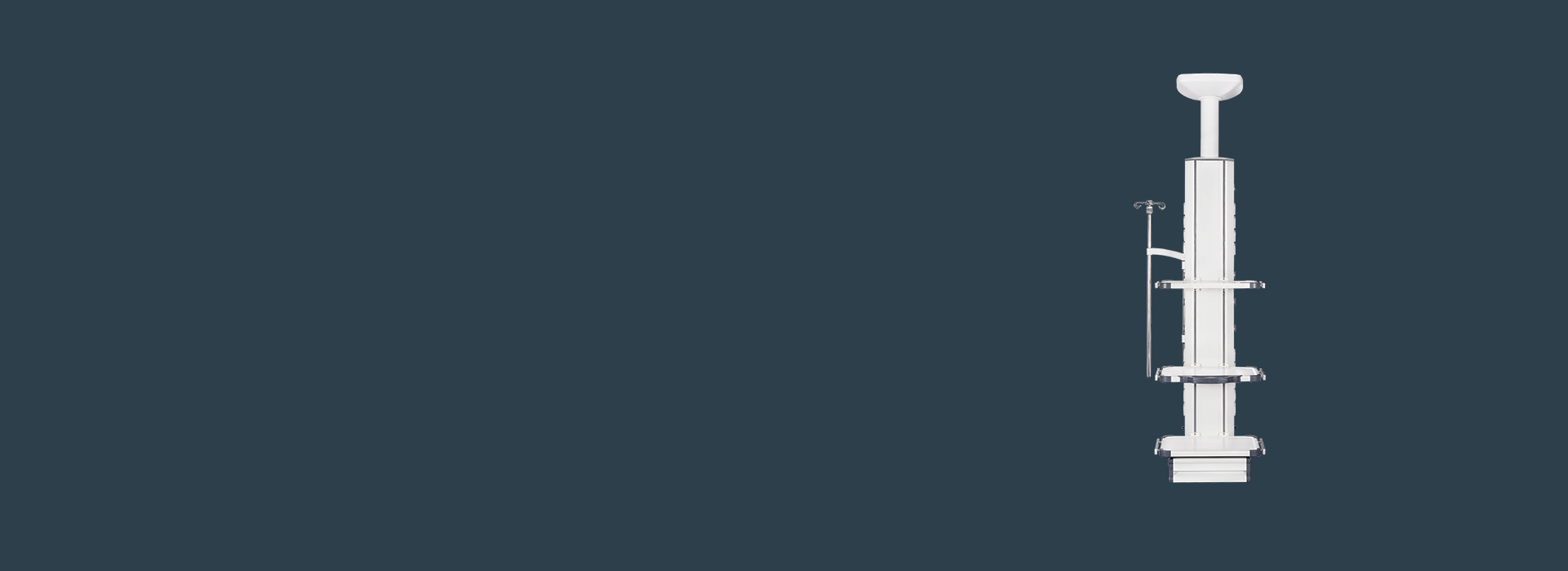

ICU medical column

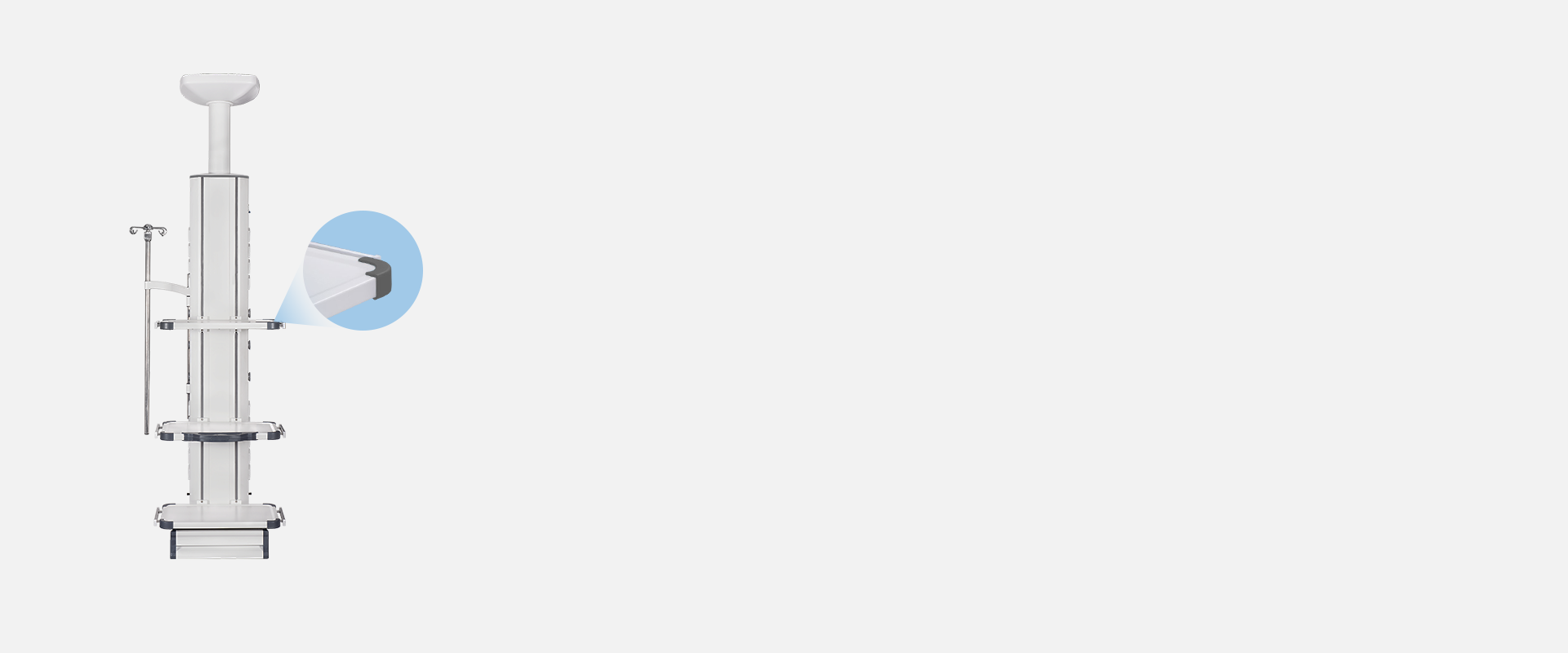

Function introduction

The gas interface can be inserted and removed for more than 20,000 times
The color and shape of the interface are different, and it has the function of preventing error
The medical column is an ideal nursing workstation for small hospitals and intensive care units limited by ward area
The surface of the material is treated by electrostatic spraying. Corrosion resistant, easy to clean. Suitable for medical clean environment
The main material is made of high strength 6063 aluminum alloy profile, moulded extrusion molding, modular splicing, the whole fully enclosed design, no acute Angle surface, no screws exposed

Product parameters
Working power	AC220V；50Hz
Terminal box horizontal rotation Angle	0～340°
Instrument platform	3 layers (height adjustable)550×400*30mm, use 10mm×25mm international standard side rail enclosure, round corner anti-collision design; Bottom with one drawer
Load capacity	Net load capacity ≥70KG
Instrument platform	2 layers, a single tray bearing weight ≥50KG, 550mm400mm30mm (height adjustable); The side rail enclosure adopts 10mm*25mm international standard, round corner collision avoidance design
Gas interface configuration	two oxygen, two suction, two air (could be configured according to the requirements of hospital )
Power supply outlet	12pcs;220V,10A
communication port	one network interface, one telephone socket
Other ground	grounding terminal: 1pc；Stainless steel adjustable infusion rod holder: 1pc（With 4 infusion bottle hooks）；Stainless steel adjustable injection pump frame: 1pc；Storage basket: 1pc；
Installation Method	ceiling type
